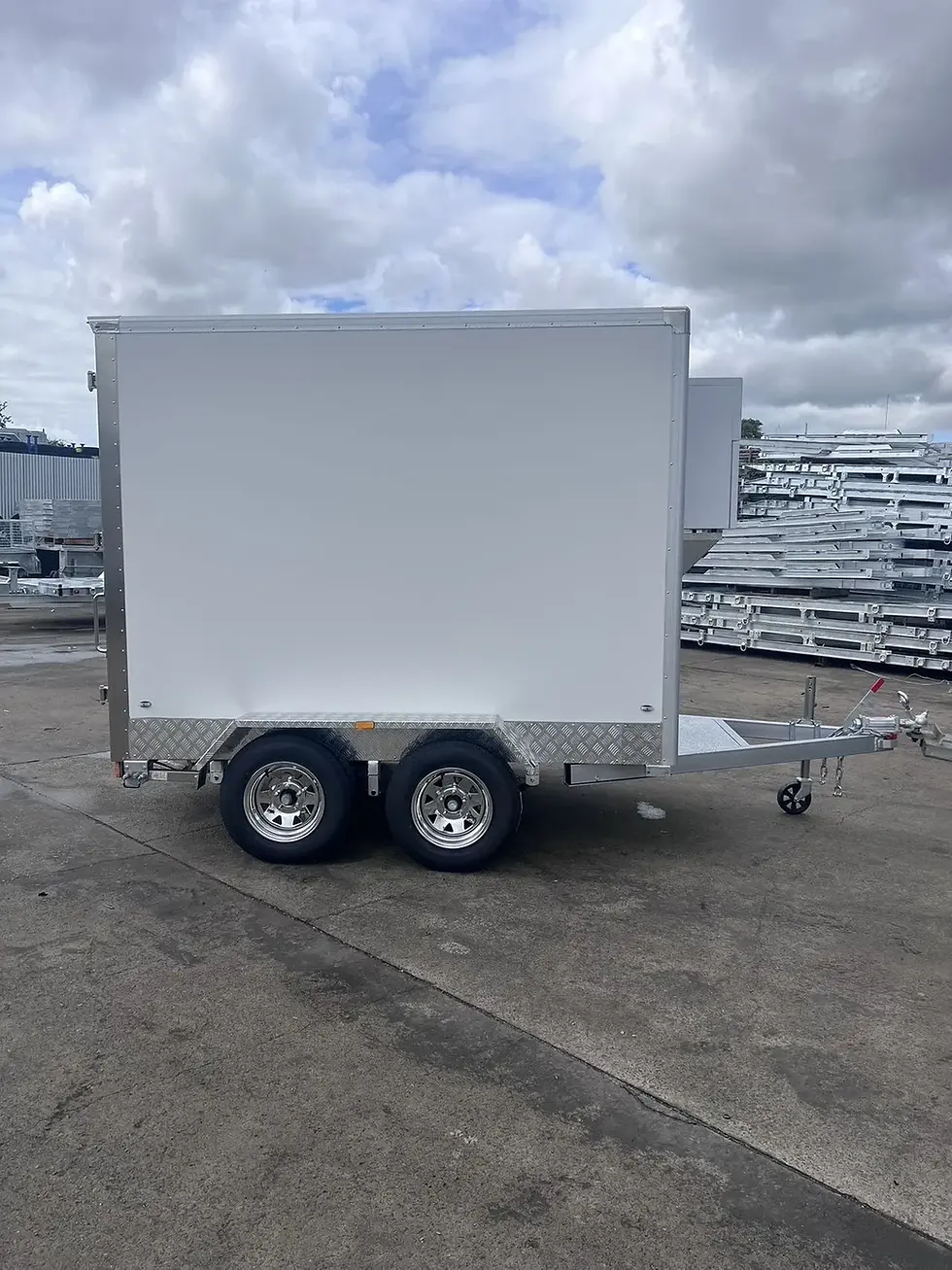

Professional 2.8×1.7m refrigerated trailer rated at 1990kg. Temperature-controlled unit perfect for mobile food service and cold storage. Ideal Uses & Applications
Mobile refrigeration for catering and events
Transporting temperature-sensitive goods
Farmers markets and food festivals
Remote location cold storage
Fishing and seafood transport operations Technical Specifications:
Outstanding capacity ranging from +5 to -23°C.
Constructed using 100 mm thick refrigeration/freezer panel.
2.8m x 1.7m x 2.1m high external sized Box Pantec style Trailer with wheels constructed to outside of enclosed section.
Wheel guards 250 mm wide polished alloy checker plate.
Trailer is 1990 kg ATM. Tare: 980kg. Payload: 1010kg.
Steel drawbar platform area for possible generator or toolbox if preferred.
Power supply 10 amp to 15 amp freezer refrigeration.
High capacity fridge freezer motor mounted to top of front wall.
Monoblock refrigeration unit cooling capacity 2400 Watt.
Full width plastic air curtain system inside rear doors.
2 x 50 mm² solid axles.
Drawbar 100 x 50 x 5 mm.
Japanese Ford slimline bearings.
6 leaf load share greaseable roller rocker suspension. (2500 kg capacity)
Fitted with mechanical override disc brakes.
Rear hinged doors fitted with 100 mm wide thermoseals.
Emergency hinge release system on one door, pins removable from inside compliant with Australian standards for freezer units.
Polished stainless steel hinges, latches and 2 x over centre cam lock the door locking system.
200mm feature polished checker plate to lower section of exterior sides.
4 x swing down adjustable stabilisers one on each corner of trailer.
Pullout retractable drop-down access step into rear of trailer.
Internal floor and perimeter kickplate (300mm high) polished alloy checker plate.
1 x internal LED light.
1 x external LED light.
Wheels including spare are new chrome steel 14 inch x 5 stud rims.
New 8 ply 185 R14 light truck tyres.
Heavy duty swing up 8 inch jockey wheel.
10/30 volt multi-volt taillights and side lights.
Removable 7 pin to 7 pin retractable tow plug wiring harness.
Twin safety chains with ADR complied and D-shackles.
